O4 Pod

Protect your O4 Pro/Lite camera with TPU in front of the lens for maximum protection but still with a clean image. How? I've modeled the camera's field-of-view (FOV) and built my design around that. My flexible on-demand design can mount in different positions (closer-in or props-hidden) with different RX antennae, GPS mount additions, and be configured for any camera tilt angle.


This is an ON-DEMAND design!

Only a few basic 10º versions are posted here, everything else is made for you (for free) on my 3D Design discord. You choose what options, I make you designs, you send me photos of your builds! See the _Steps_below.

New things:

Have a different digital or analog camera? See my universal Pod design project page– it supports the Nebula Pro, DJI Air Unit, Runcam Phoenix, Walksnail Avatar HD Pro, Moonlight, Rattel, and dozens more.

Just Follow the Steps!

1. Pick your Camera

  1. O4 Pro
  2. O4 Lite
  3. Another camera? See this project!

2. Pick your quad(s)

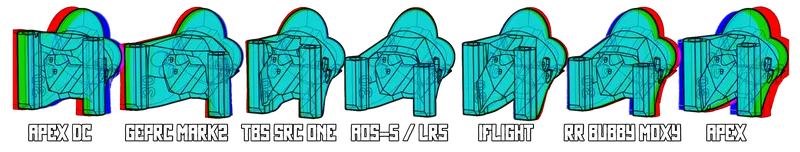

What quad you got?? I've made a highly flexible, adaptive system, with over 130 different bases in my database, new ones every day. _(Yes the photo above is from my Action2 design database.. it's what I'm pulling from to populate this new O3 Pod database!)_So far I've added

  1. AOS standard (AOS 5, LR5, UL5, etc etc), AOS 3.5, AOS Falcon 7
  2. new AOS v5 camera cage designs! AOS5v5, AOS LR5v5, etc
  3. ImpulseRC: Apex, Micro Apex, Reverb, EVO
  4. iFlight: standard (XL5-Nazgul, SL5-Cidora, F5D-Evoque, etc), Chimera 6 + 7, Chimera4 DC, Nazgul F6 DC, Titan DC5
  5. TBS: Source-One: V1, V2, V3, V4, and V5
  6. SpeedyBee: Mario5
  7. Rotor Riot: Bubby Moxy, CL1, etc
  8. FPVCycle: Glide, Toothfairy 2
  9. GepRC: Mark-2, Mark 4, Crocodile Baby 4
  10. Heks Frames: Joocy
  11. Hyperlite: Floss3
  12. Lumenier: QAV-S JB, QAV-S Mini
  13. Rekon: 4 LR, R5, R6, R10
  14. Flywoo Explorer
  15. Ummagawd: Demibot
  16. Vanover: Vannystyle
  17. Quadmula Siren F5
  18. Quadmula Siren F3
  19. Falconrad: RAD Scout
  20. Ethix: Cinerat
  21. Emax: Babyhawk II HD
  22. Diatone: Roma F35
  23. Dave_C: MicroLongRange
  24. Banggood: Steele 5
  25. Banggood Strech X5 Freestyle 220mm
  26. Air blade: Transformer Mini 4in
  27. Five33 Spec 7, Switchback Pro (beta)
  28. … way more. Totaling 160 frames as of Jan 2025Any quad is fair game, ping me on discord!

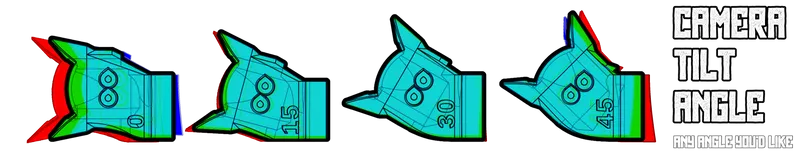

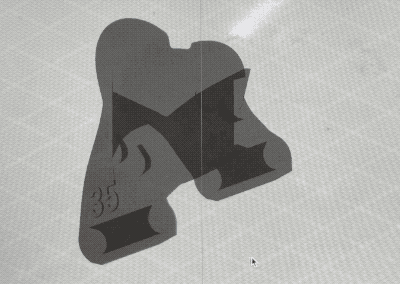

3. Pick your uptilt angle(s)

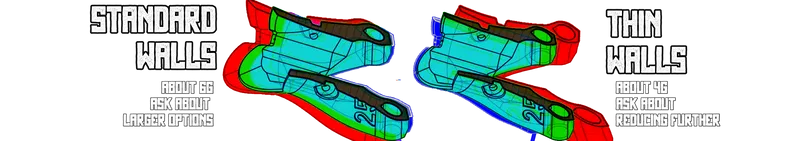

4. Wall size**Flying a 3 or 4" and want it as lightweight as possible?


  1. Standard size: 2mm most places, 3mm around the lens. Usually ~6g
  2. Thin walls: 1.2 walls, 1.6 around lens. Usually ~4g.
  3. Ask about any variations you'd like.

5. Forward Position

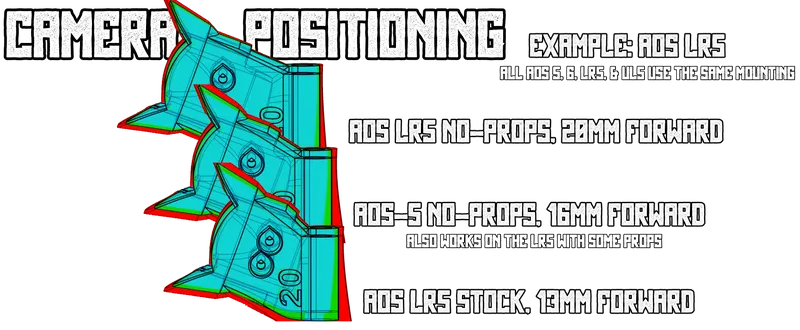

image How far forward do you want your camera? Do you want your props in view? How much?Most frames have: 1. Close-in: a little more protection, usually props in view. 2. No-props: usually a little further forward. Depends on the frame. 3. New, but not always possible: ultra-close position. Where the camera is between the front standoffs. Frequently not possible when standoffs are too close-together. 4. All aluminum camera-cage designs have limited position options. (Apex EVO, AOS V5, etc)

6. ND-Filter support

  1. None
    • May offer the most TPU protection
  2. Avata2 NDs (recommended)
    • Wide view, full FOV, no vignetting. Like from DJI, Freewell, K&F, etc.
  3. New weird above-lip big filters like these from flywoo. (not recommended)
  4. New weird tall skinny filters like these from geprc. (not recommended)
  5. More options to come! Ask about TBS ND support..

7. Vibration Isolation


  1. Standard: None! The standard already eliminates many peoples' jello issues.

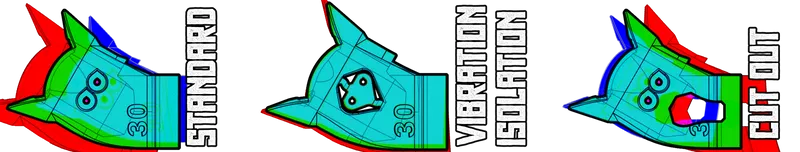

  2. Cut-out isolation style (on the right)
    • The best balance of vibration absorption, weight reduction, durability, and easy printing.
    • Only for longer forward offsets ~15mm or further forward.
  3. Vibration Isolated with mini suspension
    • Will be MORE susceptible to low-frequency oscillations from your tune/filters!
    • Most people get jello from tune oscillations! This won't help and often hurts.
    • See my “Vibration? Jello? Jitters?” section down below.

8. Antenna Mounting

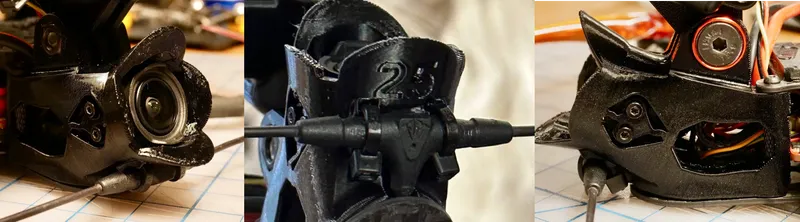

image Want to mount your RX antennas in front on the camera mount? There's three ways:  1. TBS Immortal-T * low-profile design, see photos below! * uses zip-ties (or twist-ties like I use!) to attach 2. ELRS * Single T-style antenna (just like the larger TBS style) * Diversity style: one horizontal on the bottom + one vertical on the side next to the standoff.  * Placing an antenna on the side may not fit on all frames 3. Leave a gap on the standoffs for an existing mount. Works great!

9. GPS Integrated Addition

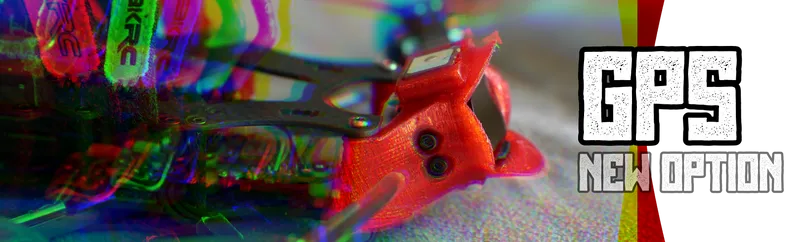

image Works best with smaller GPSs and/or longer forward positions.

New fancy GPS options:

Name gen link ~price size weight rating
Walksnail WS-M181 [w/compass] M10 caddx $17 18x18x4.6 4.3g 5
HGLRC M100 MINI M10 hglrc $16 15x15x5.2 2.6g 5
Beitian BE220 M8N / BN-220 M10 amazon $15 22x20x6 5.3g 4
GOKU GM10 Mini V3 M10 flywoo $18 18x18x4.6 4.5g 4
BZGNSS BZ-181 M10 nbd $20 18x18x8 4.6g 4
GOKU GM10 Nano V3 M10 flywoo $19 12x16x4.5 2.2g 3
GOKU GM10 Pro V3 [w/compass] M10 flywoo $20 25x25x6 7.2g 2
Matek M80-5883 m8 matek EOL 20x20x10 7g 2
TBS M8.2 GPS m8 tbs $14 20x22x6 5.2g 2
iFlight M8Q-5883 V2.0 m8 iflight $40 20x20x8.5 10g 1
MANY MORE

Yours not here? It's probably already been added!

10. Request the STL

Join my discord to request your specific custom version!Everything is generated on-demand with the settings you ask for! Why?  1. The STLs in the ‘files’ section are outdated.  * I can't possibly keep re-exporting, uploading, and organizing 80+ STLs after each tweak! 2. They don't have the configuration you want.  * I can't possibly upload all the variations! 3. User feedback is VITAL to making this project work. I need to hear from folks. → So request it! I've set up my discord as a cool queue system. I'll get you your custom STL in less than 24h, usually right away.

11. Print the Mount


12. Print the new Lens Cap design

That's it! Go fly!

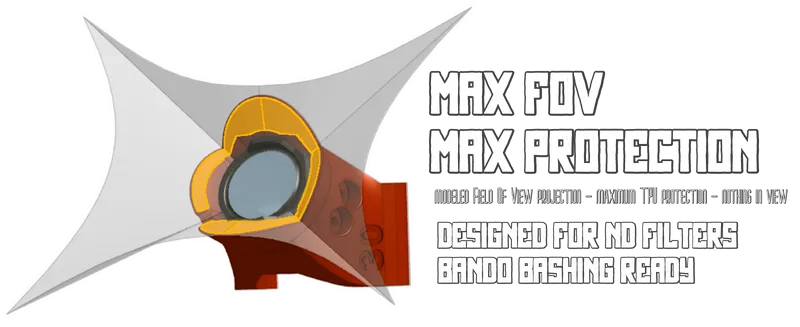

Maximum Protection?

Yes.

Frame designs have to accommodate every camera tilt and so can't add protection in the most importantplace: above and below the lens. And because FPV cams have supser wide field-of-views (the O4 Pro cam especially) they can't have much protection on the sides either.

By printing a set-angle TPU mount you've got crash-absorbing TPU out in front of the lens. Right up to the very last possible point before being in view. Maximum FOV. Maximum protection. Works best on smaller/lighter quads, especially less than 400g.

Quads are MORE durable with big action cameras on top because of the impact absorption from their bomber fixed-angle bolt down mounts. Apply the same idea to your O3 camera and leave your $500 gopro behind!

(and if you want a super protective GoPro 11 mini/fullsized or Action2 or Naked GoPro mount anyway then check out my gp11 project or A2 project)

But weight.. Is it heavier?

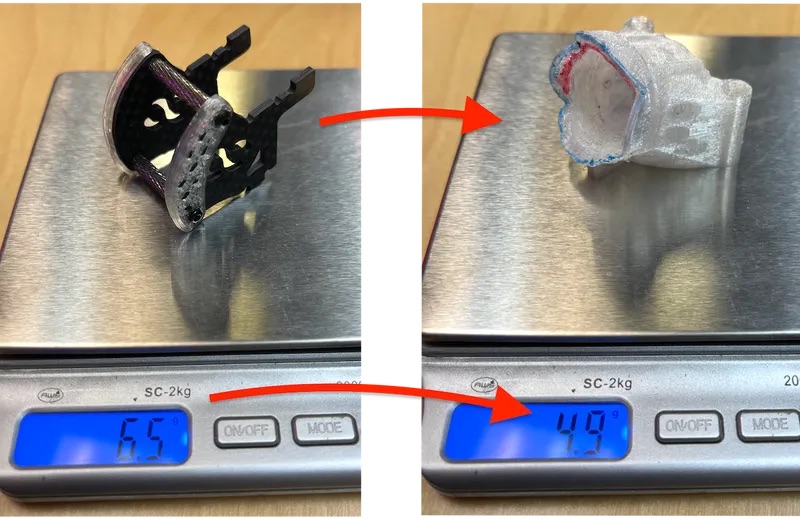

Nope!


Again: BEWARE, what's uploaded here is OUTDATED

Seriously. I just can't keep reuploading and categorizing 60+ STLs. Tweaks are always happening based on feedback. Thicker base, more material here, less there, on and on.

Remix Policy

Please reach out on my discord before making/posting a remix. Chances are that I already make the thing you're looking for and you posting it publicly means I'll never hear from new users. The whole point of my project is to hear from folks and see everyone's build. Some remix designs are great and I'll be your first ❤
